Pipe Liner

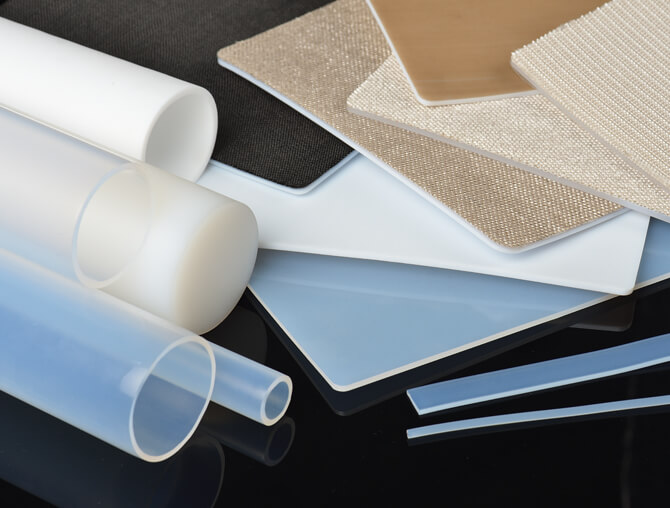

Fluoropolymer Material

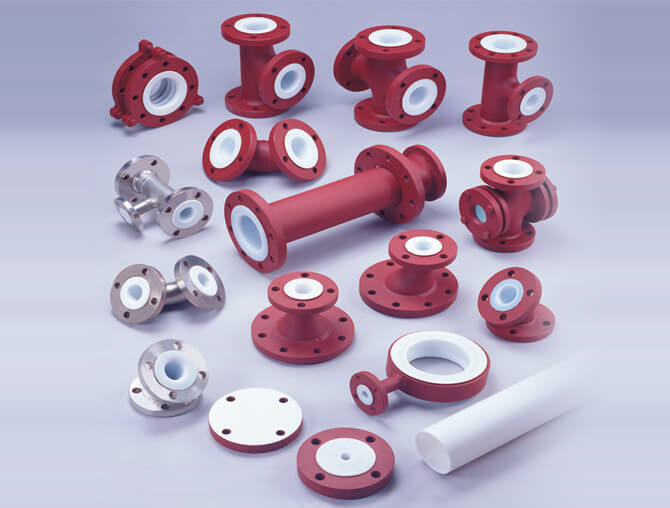

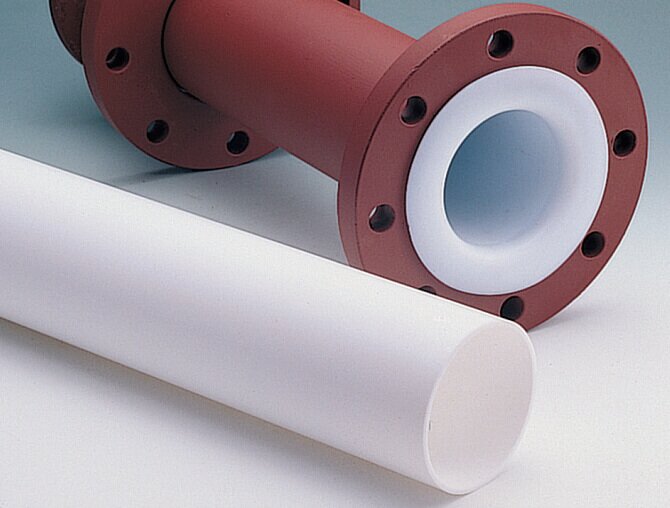

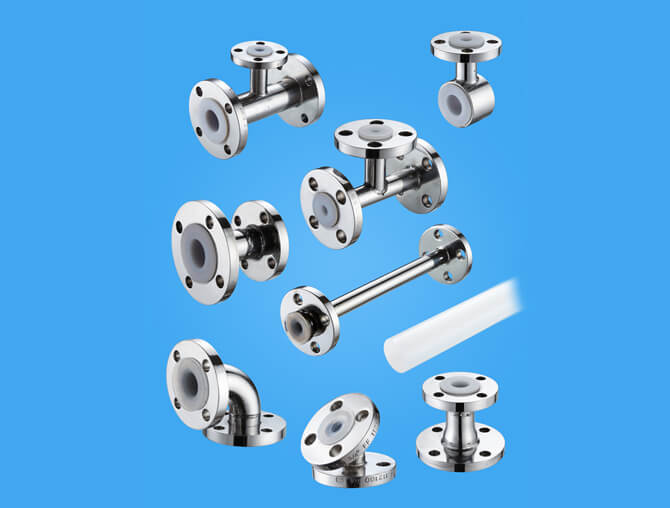

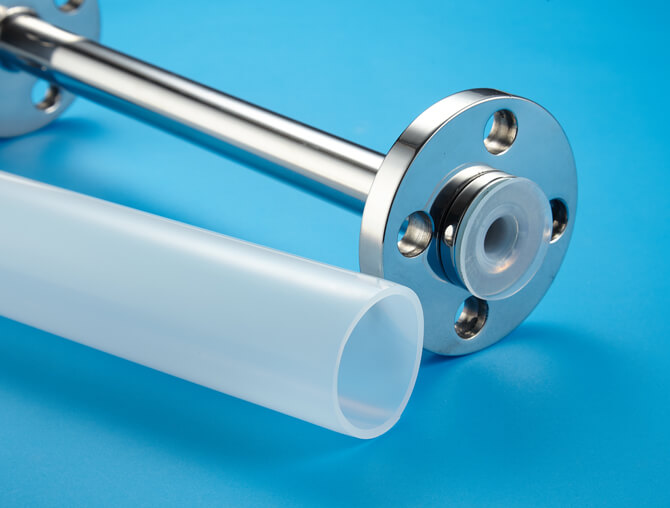

Allied Supreme Corp. provide longer pipe liner to reduce the cost of fitting joints when piping is assembled. At the same length with fewer connected flanges, it will be less possibility of leakage and also reduce the weight of the pipeline to save the cost of the support, as well as can reduce the material processing loss when fabricating lining pipe.

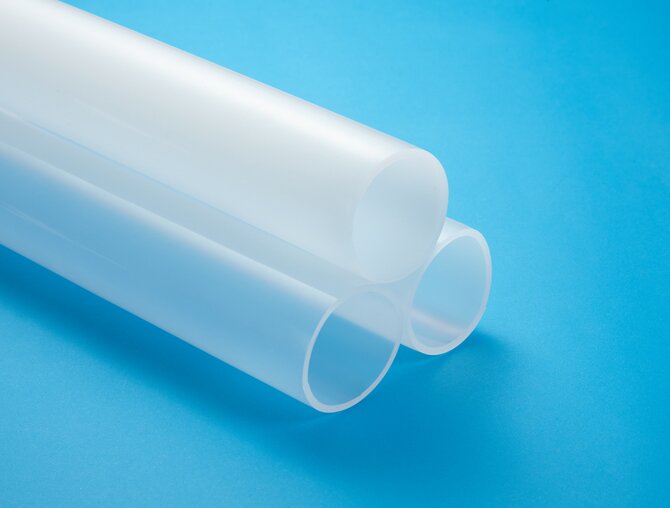

Product Photo
PFA
PFA HP
PFA HP+

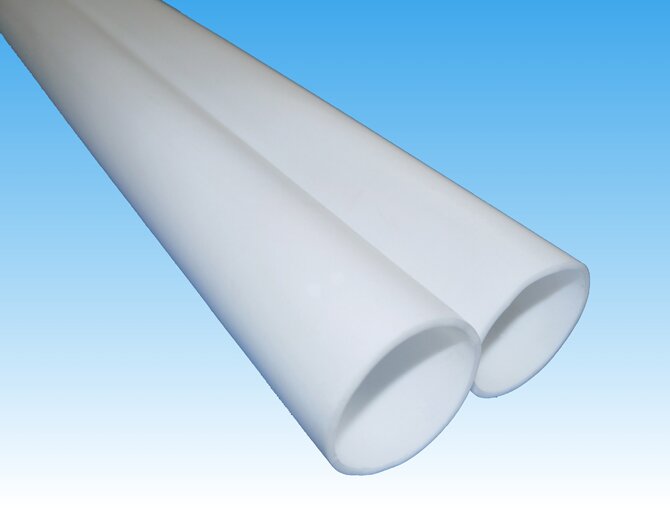

PTFE
M-PTFE

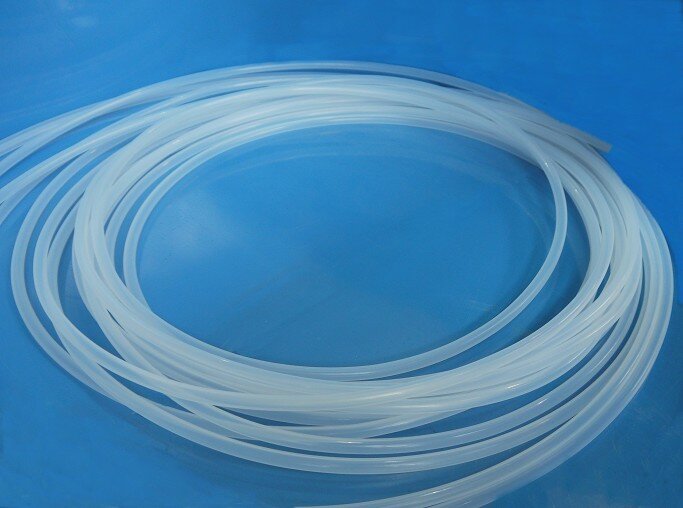

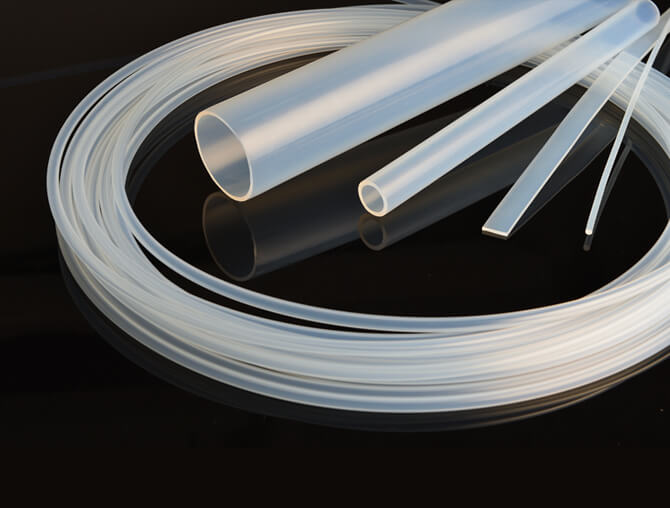

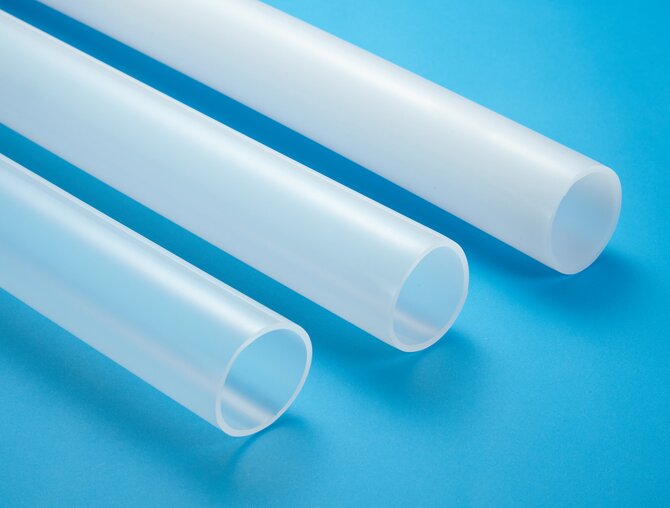

PFA
Specification:
| Specification | Unit: mm |
| OD (mm) X ID (mm) | T(mm) | Length(m) | OD ± | T ± | Length ± |
|---|---|---|---|---|---|
| 4 X 2 | 1 | 100M | ±0.1 | ±0.1 | ±1%
-0 |
| 4 X 3 | 0.5 | ||||
| 6 X 4 | 1 | ||||
| 8 X 6 | 1 | ||||
| 10 X 8 | 1 | ||||
| 12 X 10 | 1 | ||||
| 15 X 13 | 1 | ||||
| 16 X 14 | 1 | ||||
| 18 X 16 | 1 | ||||
| 19 X 16 | 1.5 | ||||
| 22 X 16 | 3 | 6.5M | ±0.15 | ||
| 22 X 18 | 2 | ±0.1 | |||
| 22 X 19 | 1.5 | ||||
| 28 X 22 | 3 | ±0.15 | |||
| 28 X 24 | 2 | ±0.1 | |||
| 28 X 25 | 1.5 | ||||
| 36 X 33 | 1.5 | ||||
| 42 X 36 | 3 | ±0.13 | ±0.15 | ||
| 42 X 38 | 2 | ±0.1 | |||
| 54 X 46 | 4 | ±0.2 | ±0.15 | ||
| 54 X 48 | 3 | ||||
| 54 X 50 | 2 | ±0.1 | |||
| 65 X 59 | 3 | ±0.15 | |||
| 65 X 61 | 2 | ±0.1 | |||
| 81 X 75 | 3 | ±0.15 | |||
| 81 X 77 | 2 | ±0.1 | |||
| 104 X 96 | 4 | ±1.5 | ±0.2 | ||
| 104 X 98 | 3 | ±0.15 | |||
| 104 X 100 | 2 | ±0.1 | |||
| 151 X 133 | 9 | 5M | ±0.4 | ||
| 151 X 139 | 6 | ±0.3 | |||
| 154 X 136 | 9 | ±0.5 | |||
| 154 X 146 | 4 | 6.5M | ±0.2 | ||
| 154 X 148 | 3 | ±0.15 | |||
| 204 X 195 | 4.5 | 5M | ±2 | ±0.2 | |
| 204 X 194 | 5 | ±0.3 | |||
| 204 X 192 | 6 | ±0.5 |
| OD (mm) X ID (mm) | T(mm) | Length(m) | OD ± | T ± | Length ± |
|---|---|---|---|---|---|
| 3.17 X 1.59 | 0.79 | 100M | ±0.1 | ±0.1 | ±1%
-0 |
| 6.35 X 3.95 | 1.2 | ||||
| 6.35 X 4.35 | 1 | ||||
| 9.53 X 6.33 | 1.6 | ||||
| 9.53 X 7.53 | 1 | ||||
| 12.70 X 9.50 | 1.6 | ||||
| 12.70 X 10.70 | 1 | ||||
| 19.05 X 15.85 | 1.6 | 6.5M
& 100M | |||
| 25.40 X 22.20 | 1.6 | ||||
| 31.75 X 27.95 | 1.9 | ||||
| 31.75 X 28.55 | 1.6 | ||||
| 38.10 X 33.75 | 2.17 | ||||
| 21.34 X 15.78 | 2.77 | 5M | ±0.13 | 0.15 | |
| 26.67 X 20.93 | 2.87 | ||||
| 33.40 X 26.64 | 3.38 | ±0.2 | |||
| 60.32 X 52.50 | 3.9 |
Note: Other specifications are upon request.
| Specification | Unit: mm |
| Size | Standard wall | Length (m) | Heavy wall | Length (m) | |||
|---|---|---|---|---|---|---|---|
| mm | Inch | OD (mm) | T (mm) | OD (mm) | T (mm) | ||
| 50 | 2" | 54.4 | 3.5 | 6.10 | 53.7 | 4.15 | 6.10 |
| 80 | 3" | 82.4 | 3.4 | 6.10 | 80.2 | 4.9 | 6.10 |
| 100 | 4" | 106.3 | 3.5 | 6.10 | 104.4 | 4.85 | 6.10 |
| 150 | 6" | 156 | 4.5 | 6.10 | 153.7 | 6.25 | 6.10 |
| 200 | 8" | 207.2 | 5.7 | 6.10 | 204.6 | 7.2 | 6.10 |
| 250 | 10" | 263.2 | 6.9 | 6.10 | 258.4 | 9.1 | 6.10 |
| 300 | 12" | 313.5 | 6.7 | 6.10 | 308.1 | 12.1 | 6.10 |
| 350 | 14" | 341.2 | 6.6 | 2.20 | - | - | - |
| 400 | 16" | 388.7 | 7.25 | 2.20 | 384.8 | 10.8 | 2.20 |
| 450 | 18" | 444.9 | 9.9 | 2.20 | - | - | - |
| 500 | 20" | - | - | - | 487.9 | 14 | 2.20 |
| 750 | 30" | - | - | - | 735.6 | 14.7 | 1.20 |
*Tolerance (liner's OD): below than 6” (inclusive) ± 2%; 8” (inclusive) and above sizes ± 2.5%. Thickness ± 12%.
*Length maybe varied but averagely 6.10 M.
*The liner from 2” ~ 8” is according to sch.40; and from 10” ~ 20” will be according to sch.20.
Material property:
| Item | Specific Gravity | Elongation (%) | Tensile strength (kfg/cm 2) |
|---|---|---|---|
| Test method | ASTM D792 | ASTM D638 | ASTM D638 |
| PTFE | 2.15 ~ 2.20 | ≥250 | ≥250 |
Allied Supreme Corp. provide longer pipe liner to reduce the cost of fitting joints when piping is assembled. At the same length with fewer connected flanges, it will be less possibility of leakage and also reduce the weight of the pipeline to save the cost of the support, as well as can reduce the material processing loss when fabricating lining pipe.
