TEFPASS® Flexible Hose
Fluoropolymer Lining
Allied Supreme Corp. further offers the superior performance of “TEFPASS Teflon flexible hose”. The main purpose is to meet high purity for semiconductor industry in chemical delivering. Specially, the “SHPT type hose can be used in high temperature, full vacuum resistance. It has been largely applied and fully supported by our customers.

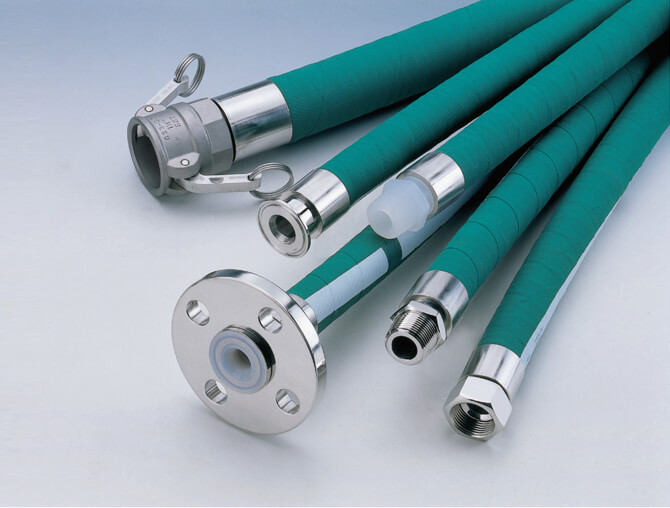

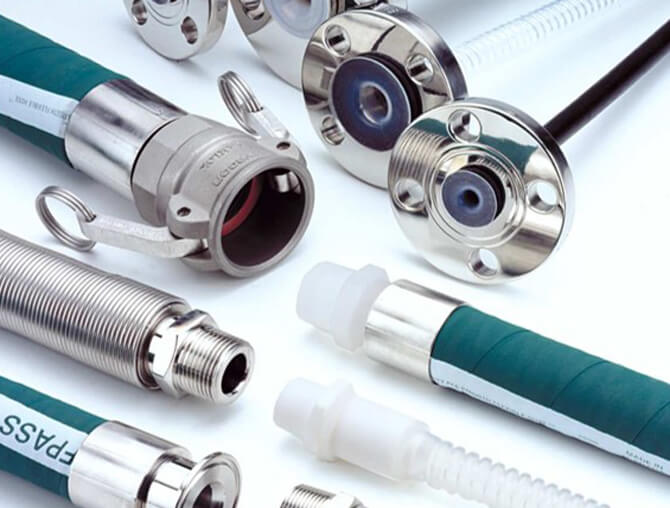

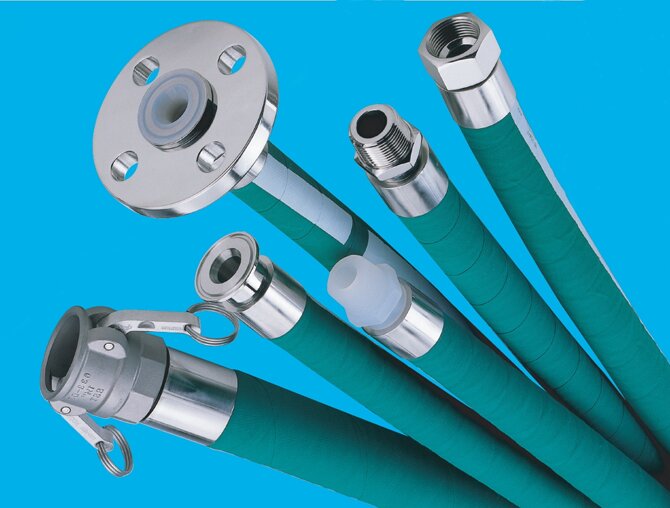

Product Photo
TEFPASS® Flexible Hose
TEFPASS® Flexible Hose
TEFPASS® Flexible Hose

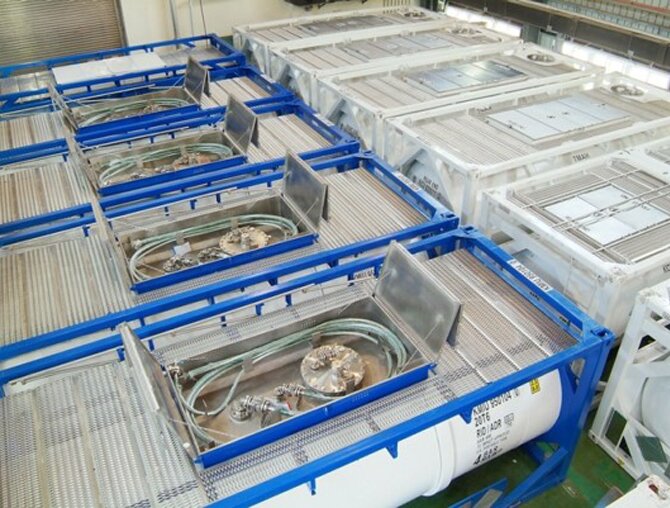

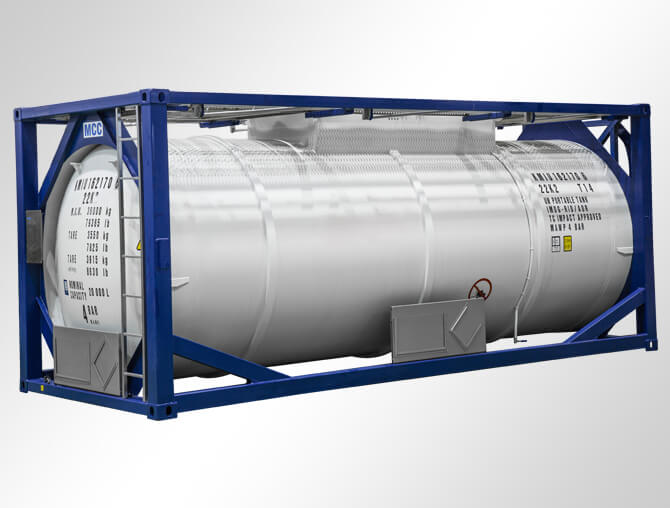

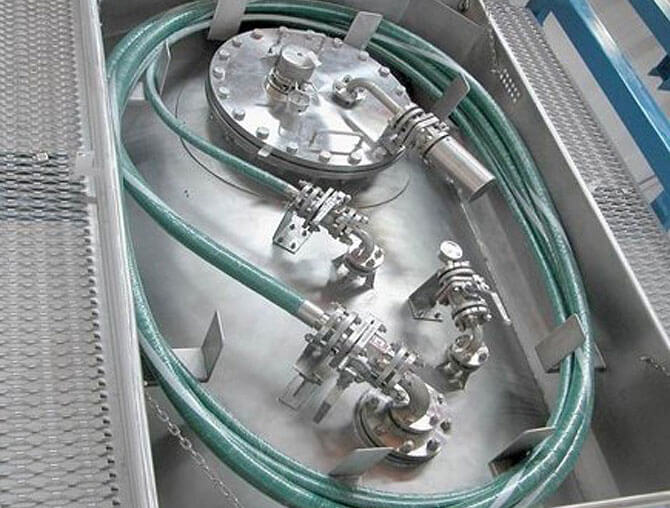

ISO Container
Specification:
Hose size: 1/2"~4"
| Specification | Unit: mm |
| Nominal A | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 1/2" | 3/4" | 1" | 1-1/2" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size B | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | ||||
| D1 | 19 | 25 | 33 | 33 | 39 | 50 | 65 | 77 | 100 | 10.70 | 15.85 | 22.20 | 33.75 |
| D2 | 40 | 50 | 60 | 70 | 80 | 90 | 120 | 130 | 150 | 28 | 40 | 50 | 60 |
| T | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 | 2 | 1 | 1.6 | 1.6 | 2.18 |
| Max. Length | 6M | 6M | 6M | 6M | 6M | 6M | 5M | 5M | 4M | 2M | 4M | 4M | 4M |
| Pressure Rating | Unit: kg/cm2 |
| Nominal A | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 1/2" | 3/4" | 1" | 1-1/2" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size B | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | ||||
| CT Type | 5 | 4 | 4 | 3.5 | 3.5 | 3 | 2.5 | 2 | 1.5 | 2 | 3 | 4 | 4 |
| MCT Type | 18 | 17 | 16 | 16 | 14 | 13 | 10 | 8 | 7 | - | - | - | - |
| Min. Bend Radius | Unit: mm |
| Item | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
|---|---|---|---|---|---|---|---|---|---|
| Size | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| CT Type | 50 | 100 | 100 | 100 | 150 | 150 | 200 | 250 | 300 |
| MCT Type | 100 | 150 | 150 | 150 | 200 | 200 | 250 | 300 | 400 |
Allied Supreme Corp. further offers the superior performance of “TEFPASS Teflon flexible hose”. The main purpose is to meet high purity for semiconductor industry in chemical delivering. Specially, the “SHPT type hose can be used in high temperature, full vacuum resistance. It has been largely applied and fully supported by our customers.
Product list:
Product list:
- SHPT type
- MCT & CT type

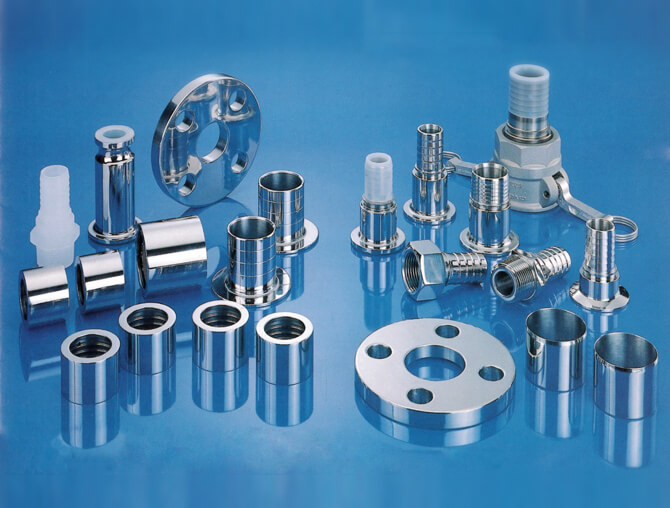

- Flange Fittings
- Sanitary Fittings
- Quick Connecter
